Probably no torch is as well known as the National 3A blowpipe. For decades, this versatile premix hand torch has been the standard for both scientific and artistic glassblowers everywhere. Suitable for a variety of fuels (natural gas, propane, or butane) with oxygen or compressed air ... just select the proper type of tip for the gases used.
The 3A-B is the latest refinement of this classic torch. Please specify whether you wish for barbed hose fittings or threaded hose fittings.
*NOTE* Premix torches are best used on 'hard glass' (borosilicate, or Pyrex), and may burn or reduce the colors in soft glasses.
| Part Number | Description | Price |
|---|---|---|
| 3A-B | Handle w/barbed fittings | $96.15 |
| 3B-B | Handle w/threaded fittings | $102.92 |
The 3A-B Torch Handle is sold without tips, which are available separately.
| Part Number | Description | Price |
|---|---|---|
| OX-00 | Single .020" dia. orifice | $21.15 |
| OX-0 | Single .032" dia. orifice | $19.80 |
| OX-1 | Single .042" dia. orifice | $16.09 |
| OX-2 | Single .055" dia. orifice | $13.39 |
| OX-3 | Single .070" dia. orifice | $13.39 |
| OX-4 | Single .082" dia. orifice | $13.39 |
| OX-5 | Single .100" dia. orifice | $13.39 |

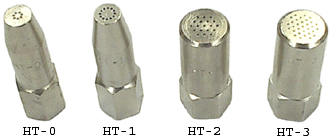

| Part Number | Description | Price |
|---|---|---|
| HT-0 | 7 orifice, .025 dia. on .093 Hole Circle | $38.13 |
| HT-1 | 12 orifice, .025 dia. on .160 Hole Circle | $39.10 |
| HT-2 | 19 orifice, .025 dia. on .263 Hex Pattern | $43.92 |
| HT-3 | 31 orifice, .025 dia. on .353 Hex Pattern | $50.88 |

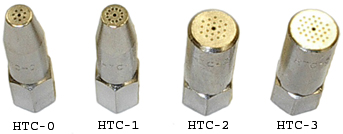

| Part Number | Description | Price |
|---|---|---|
| HTC-0 | HT-0 tip (7 orifice) w/.031 dia. center orifice | $39.59 |
| HTC-1 | HT-1 tip (12 orifice) w/.039 dia. center orifice | $41.96 |
| HTC-2 | HT-2 tip (19 orifice) w/.045 dia. center orifice | $46.68 |
| HTC-3 | HT-3 tip (31 orifice) w/.050 dia. center orifice | $53.21 |
| Part Number | Description | Price |
|---|---|---|
| HTM-0 | 7 orifice, .031 dia. (6) on .180 Hole Circle | $37.06 |
| HTM-1 | 9 orifice, .040 dia. (8) on .180 Hole Circle | $37.06 |
| HTM-2 | 9 orifice, .049 dia. (8) on .180 Hole Circle | $37.06 |
| HTM-3 | 9 orifice, .055 dia. (8) on .180 Hole Circle | $37.06 |
This adjustable cast-iron base holds your 3A-B torch in any position. The torch can still be easily removed from the base, when needed, by just lifting the torch from the bracket. No tools are required!
(torch and tip not included)
| Part Number | Description | Price |
|---|---|---|
| TS191 | Torch Stand | $54.66 |

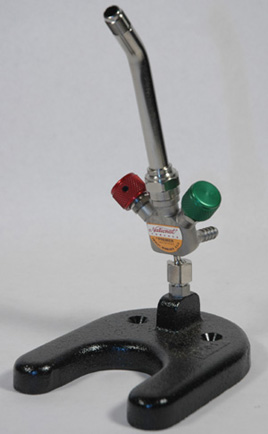

If you are always going to use your torch on the bench, this bench-only version of the 3A-B may be a cost effective alternative. This torch combines the same internal design of the 3A-B with an adjustable cast-iron base, while eliminating the unnecessary handle, saving you over $30 compared to the 3A-B with the TS191 Stand. This torch uses all of the same tips as the 3A-B. The 6B Bench Torch comes equipped with barbed hose fittings.
| Part Number | Description | Price |
|---|---|---|
| 6B | Bench Torch | $113.57 |
The 6B Bench Torch is sold without tips, which are available separately.

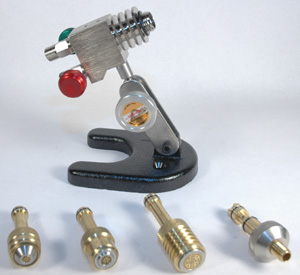

The 8M is a surface mix burner, designed for those artists working with soft glass, or larger work. The 8M is designed to use one of three interchangable surface mix tips (show above left, sold separately). The tips simply twist on & off, no tools required! Plus, with a simple adaptor (shown above right, sold separately), you can also use all of the premix tips used on the 3A-B! Talk about versatility! This one torch can be used for both hard and soft glass, and on large and small work! The 8M Surface Mix Torch comes equipped with threaded hose fittings.
| Part Number | Description | Price |
|---|---|---|
| 8M | Surface Mix Bench Torch | $159.71 |
The 8M Surface Mix Bench Torch is sold without tips, which are available separately.
| Part Number | Description | Price |
|---|---|---|
| SM-5 | 7 Oxygen holes & 6 fuel slots | $85.48 |
| SM-7 | 7 Oxygen holes & 6 fuel slots | $85.48 |
| SM-21 | 29 Oxygen holes & 16 fuel slots | $110.23 |
| PA-1 | Adapter | $48.37 |

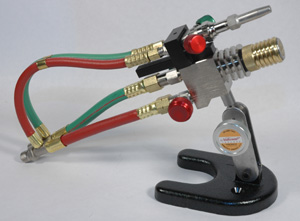

For the Ultimate in versatility, here is the 8R Rider Torch, which 'piggy backs' on top of the 8M. The 8R is based on the same design as the 3A-B, and uses all of the same tips. This gives you two individually adjustable torches in one!
The 8R comes with all hardware needed to mount it on top of the 8M, and comes equipped with threaded hose fittings. Add the available Manifold Hose to complete the setup.
| Part Number | Description | Price |
|---|---|---|
| 8R | Premix 'Rider' torch for the 8M | $104.61 |
| CTM-ABB | Manifold hose | $45.76 |
The 8R Rider Torch is sold without tips, which are available separately.
